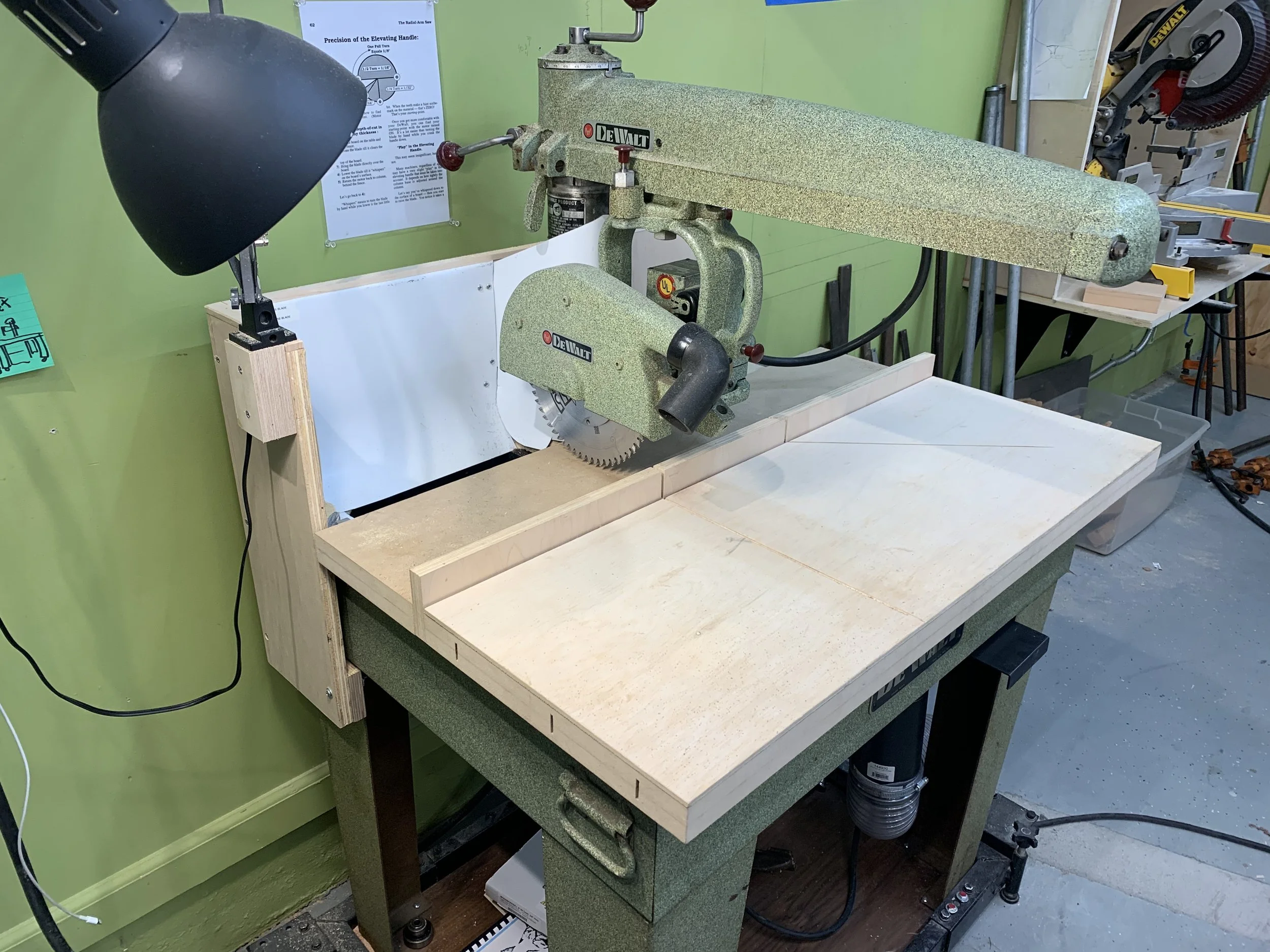

• 1955 DEWALT G.W.I. RADIAL ARM SAW REBUILD. Mr. Sawdust top and integrated dust collection. Restoration advice from Wally Kunkel and Dewalt Radial Arm Saw Forum (Delphi)

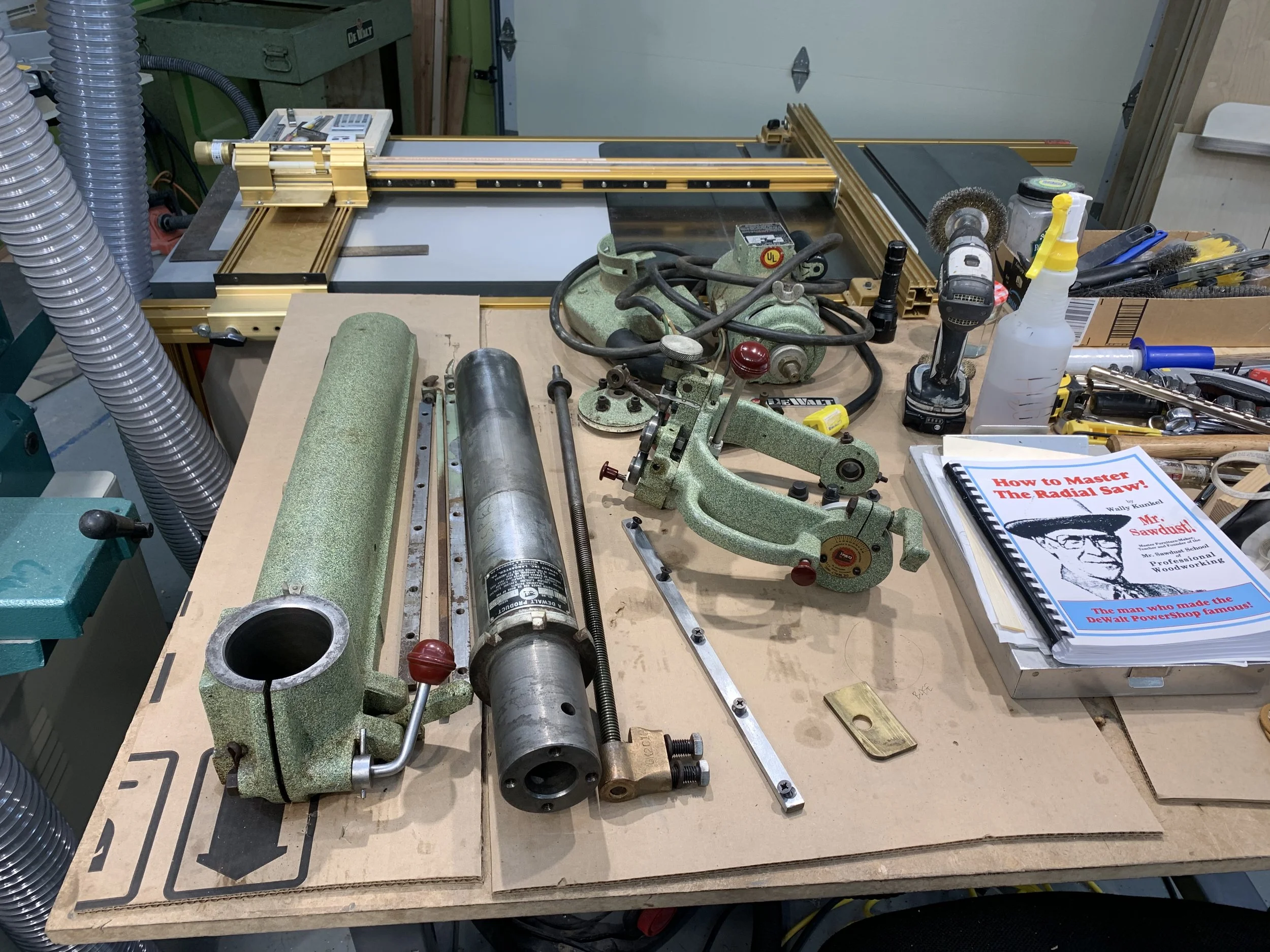

  • Written by the expert on Radial Arm Saws. Mr. Sawdust Senior. A must for tuning saw. Tons of information and techiques to learn.

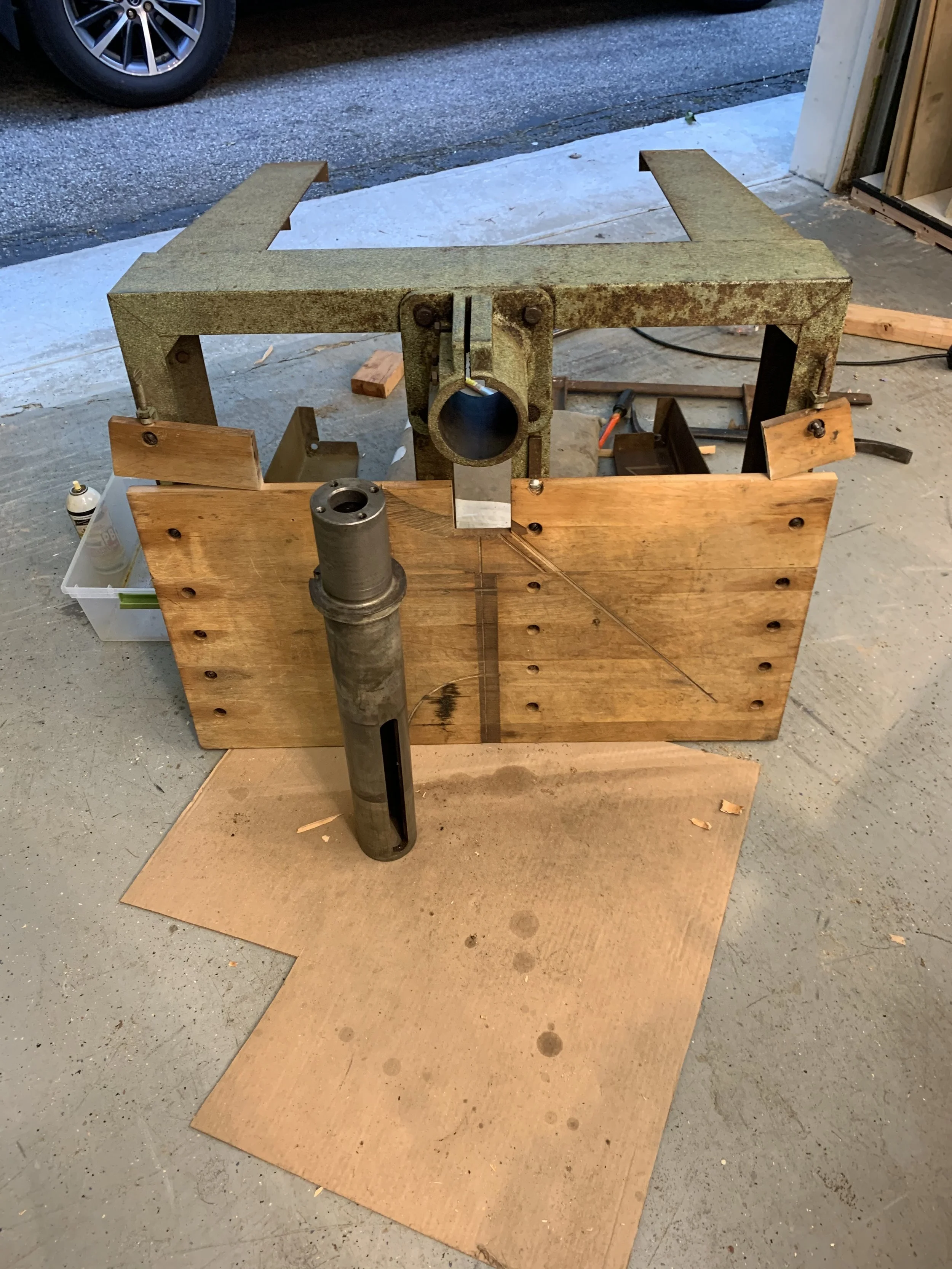

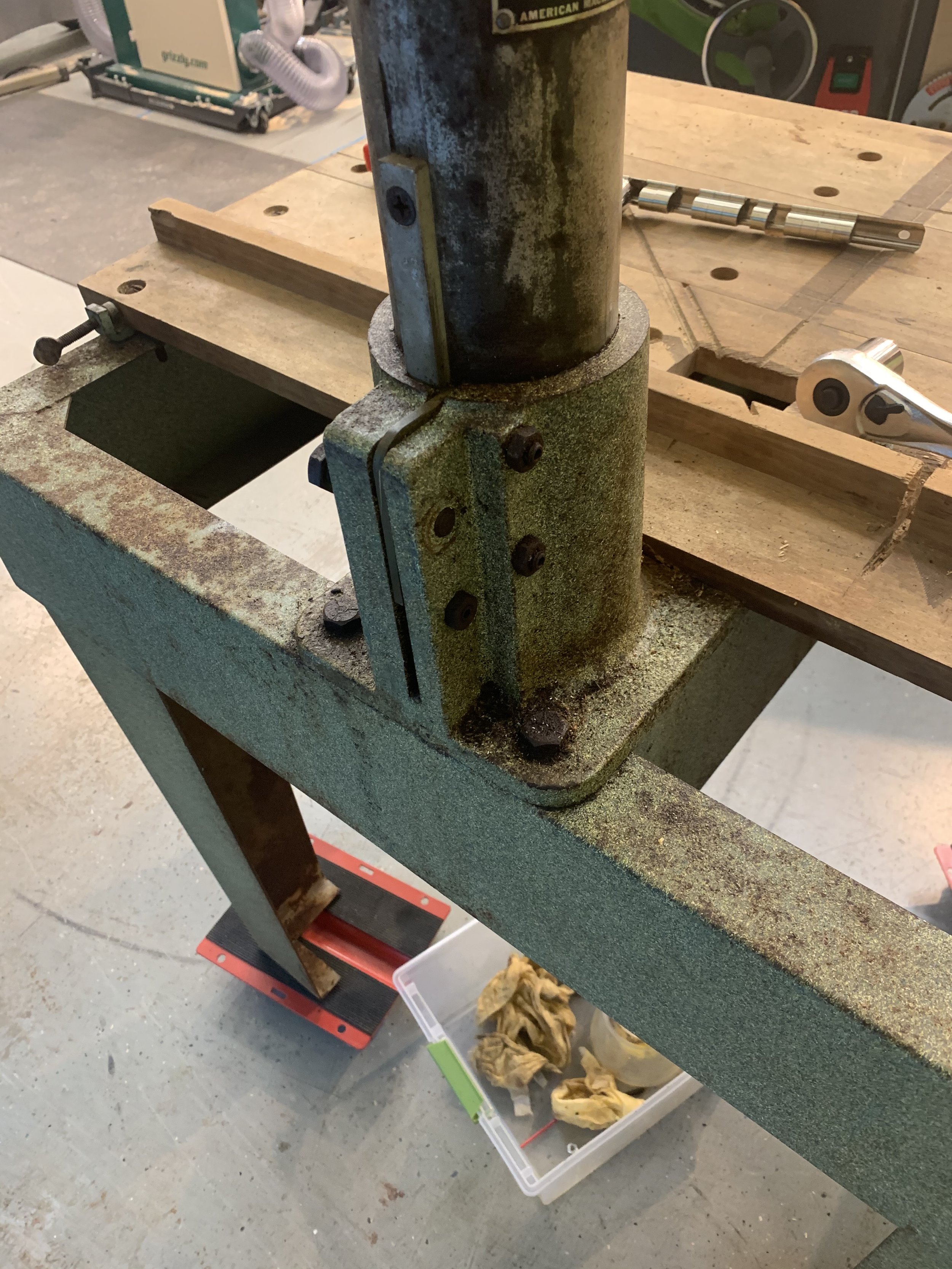

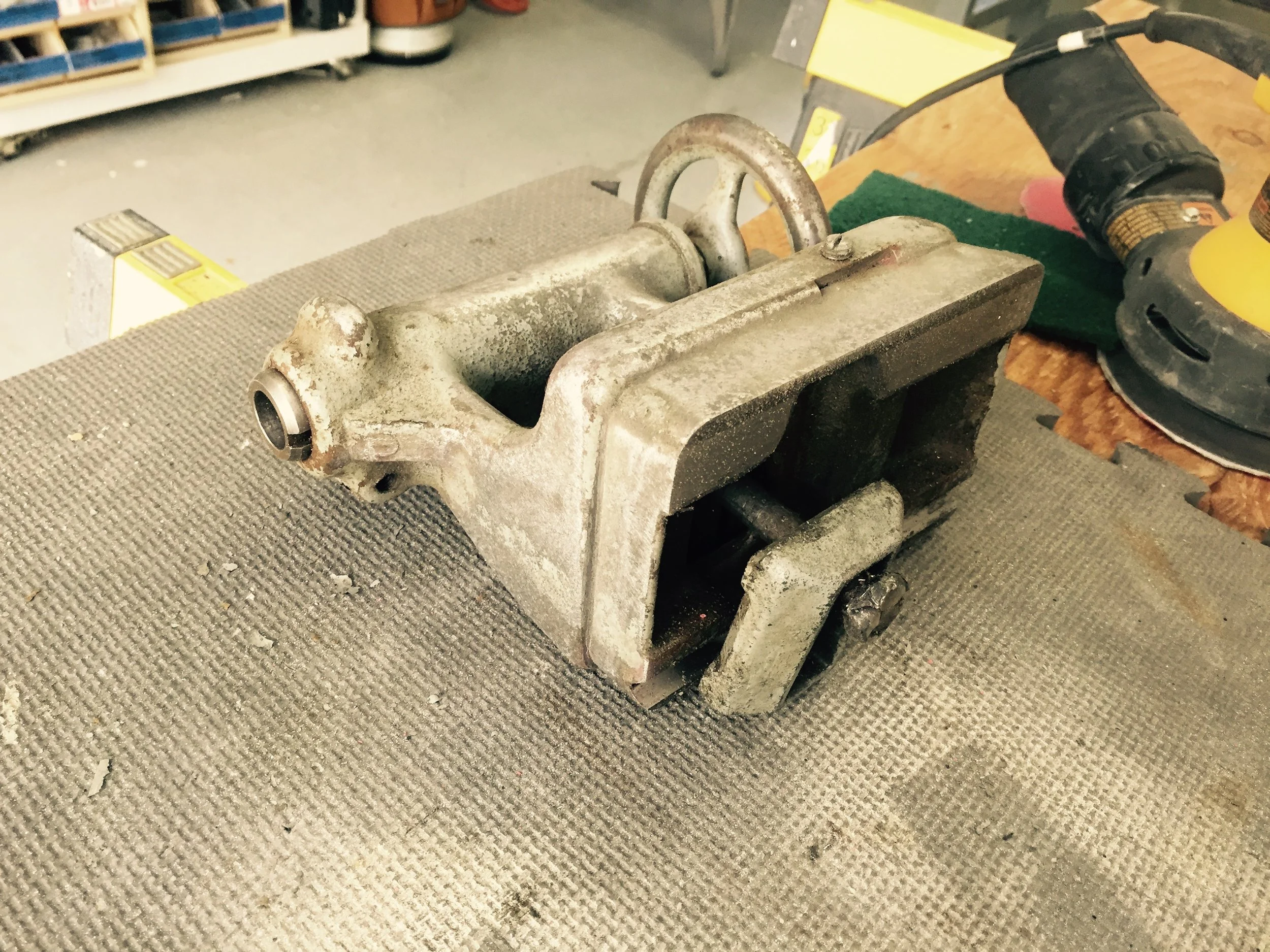

  • Collar to post rusted locked up. 2 days of PB blaster and gentle persuasion freed

  • Finally free. Now its time for a new "Mr. Sawdust top"

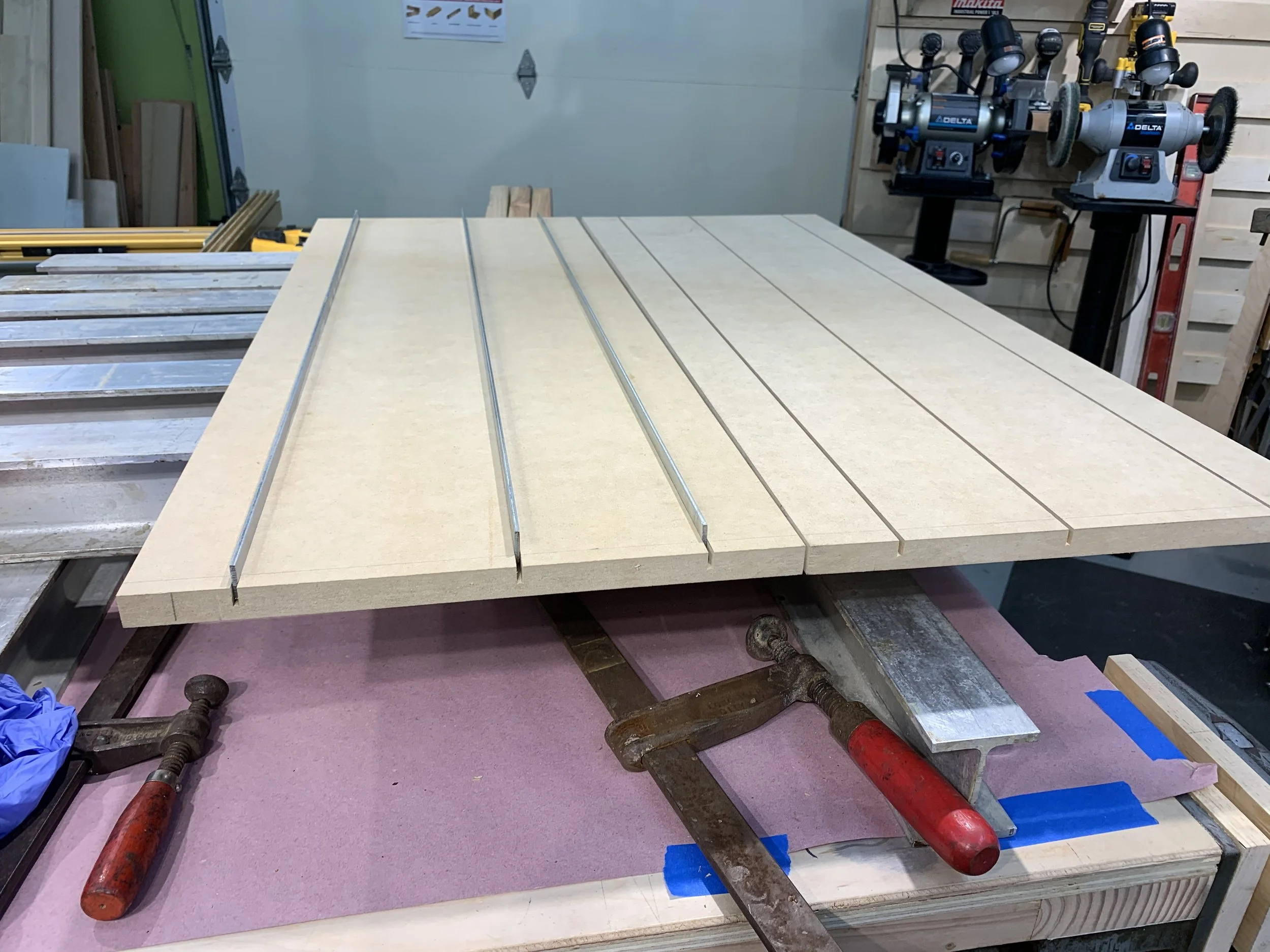

  • M.D.F. top and bottom with 3/4" steel bar reinforcements ready for glue and clamps

  • Yellow glue for M.D.F. and epoxy resin for steel bar reinforcement

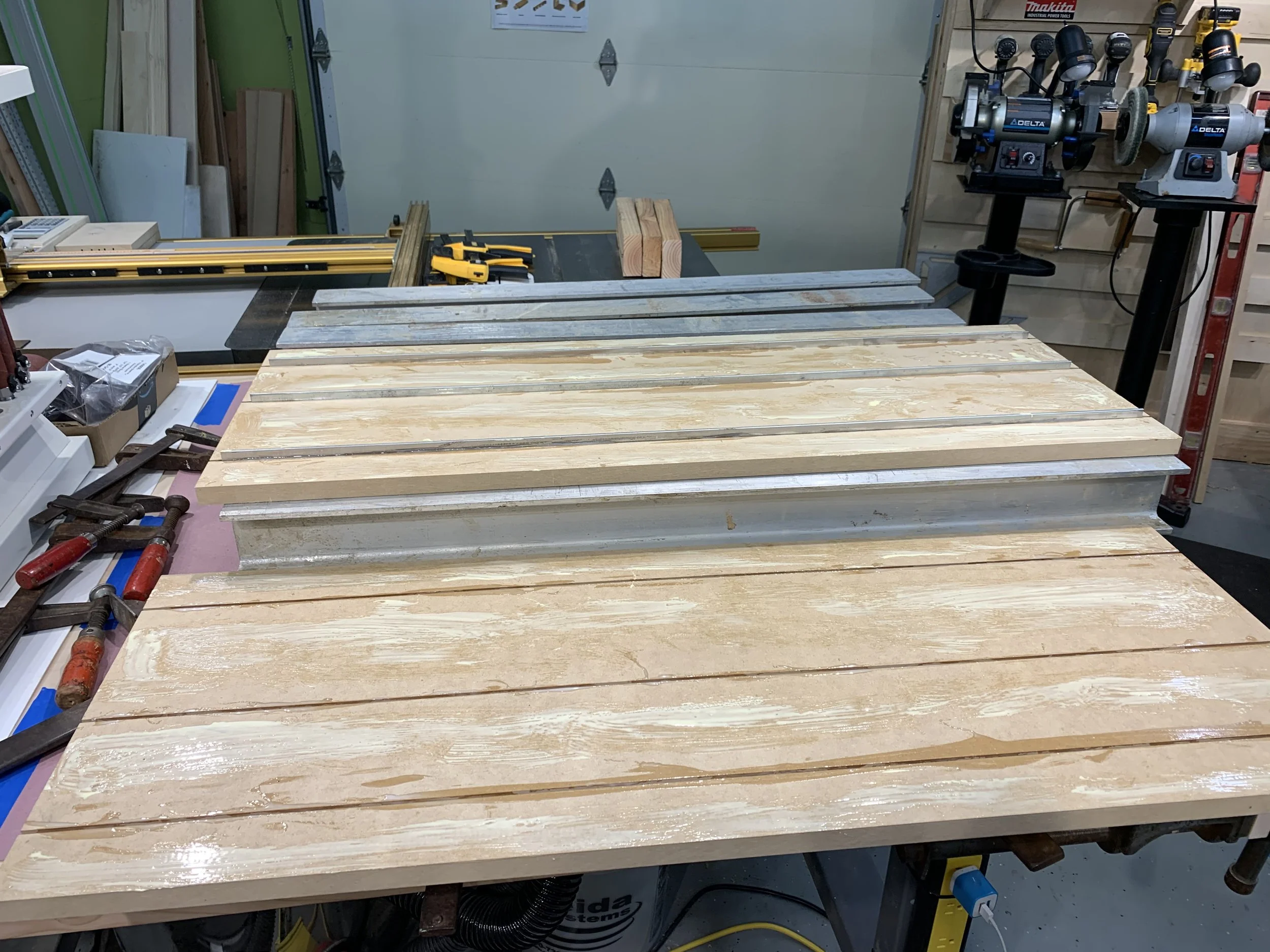

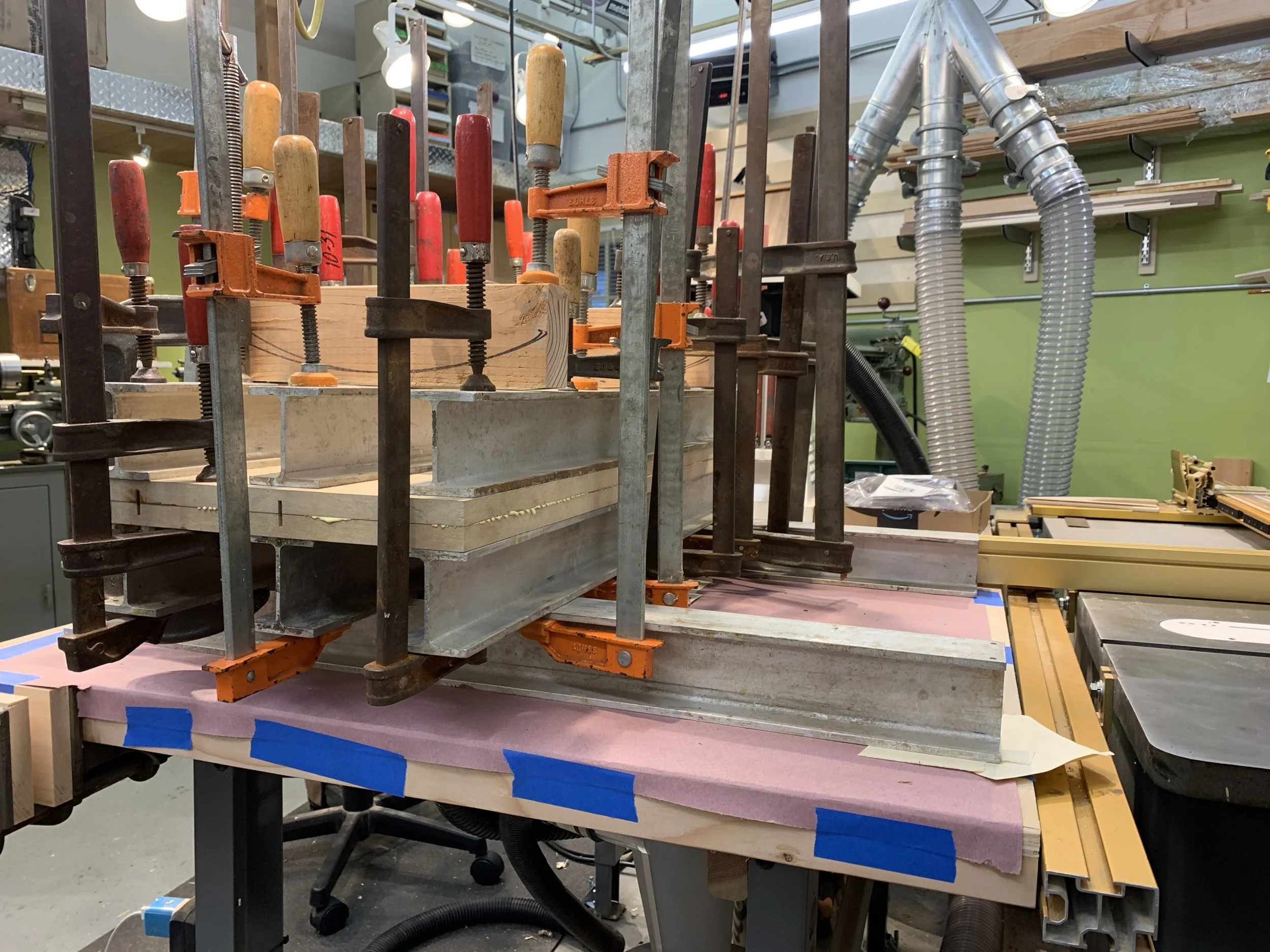

  • Clamped with aluminum I-beams for absolute flatness. Thanx Wally for loan of I-beams.

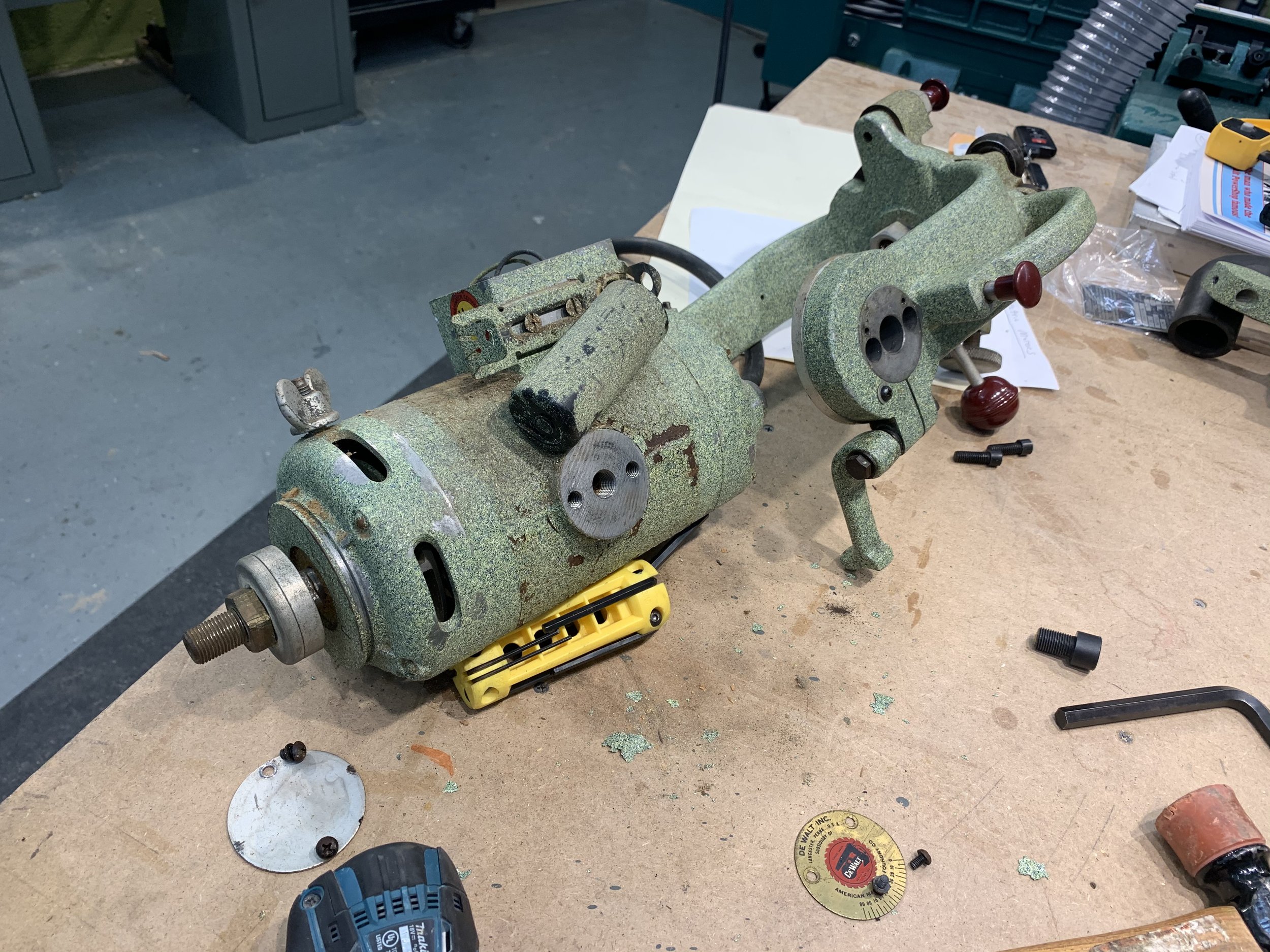

  • Starting to wire wheel all the moving parts

  • Time for new motor bearing and start capacitor. Speedwell electric motors in Morristown, NJ to the rescue. Please dont paint the motor leave the speckled green

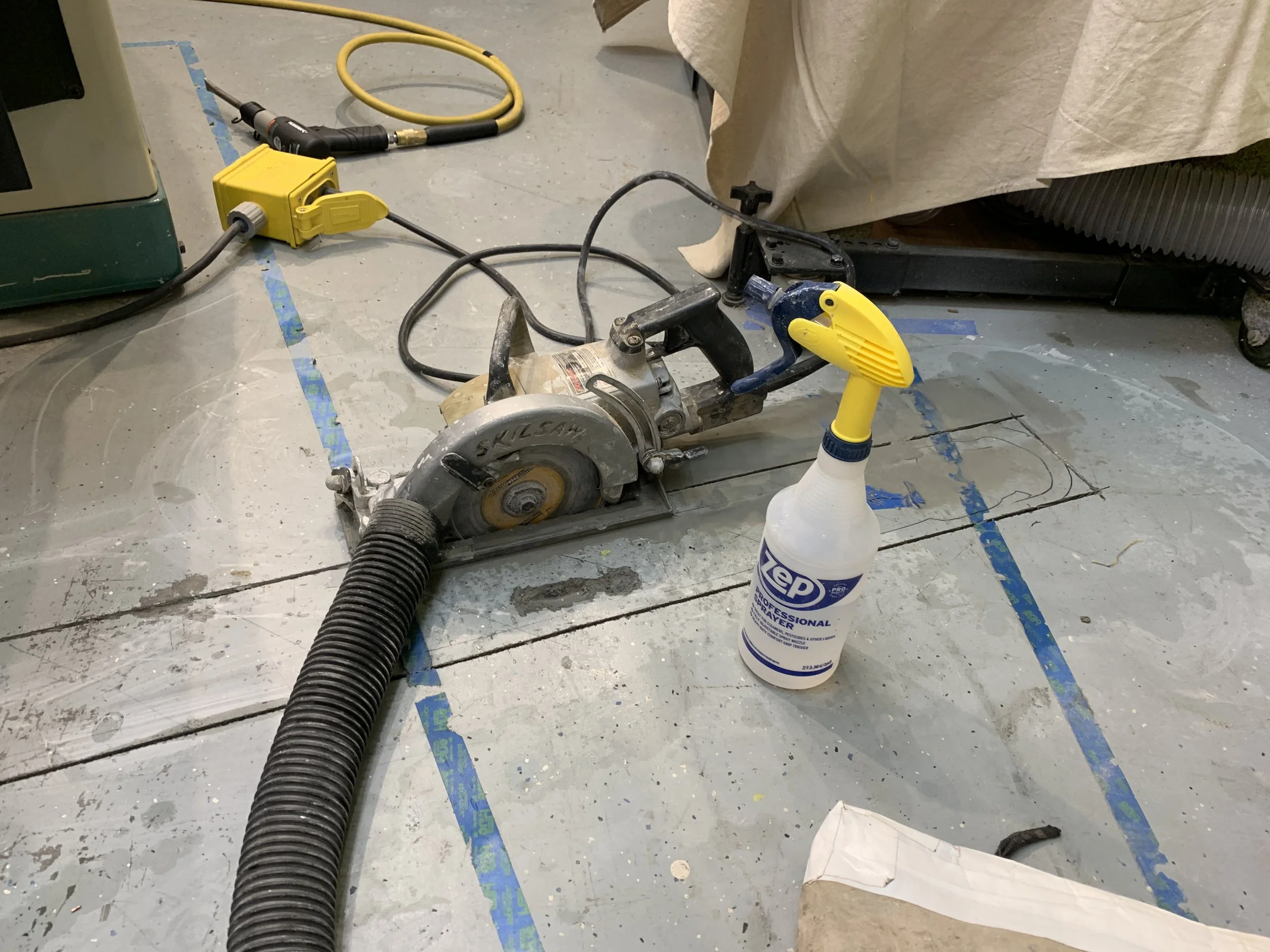

  • Couldnt run ductwork overhead ran in concrete floor. Cutting with diamond blade worm drive saw.

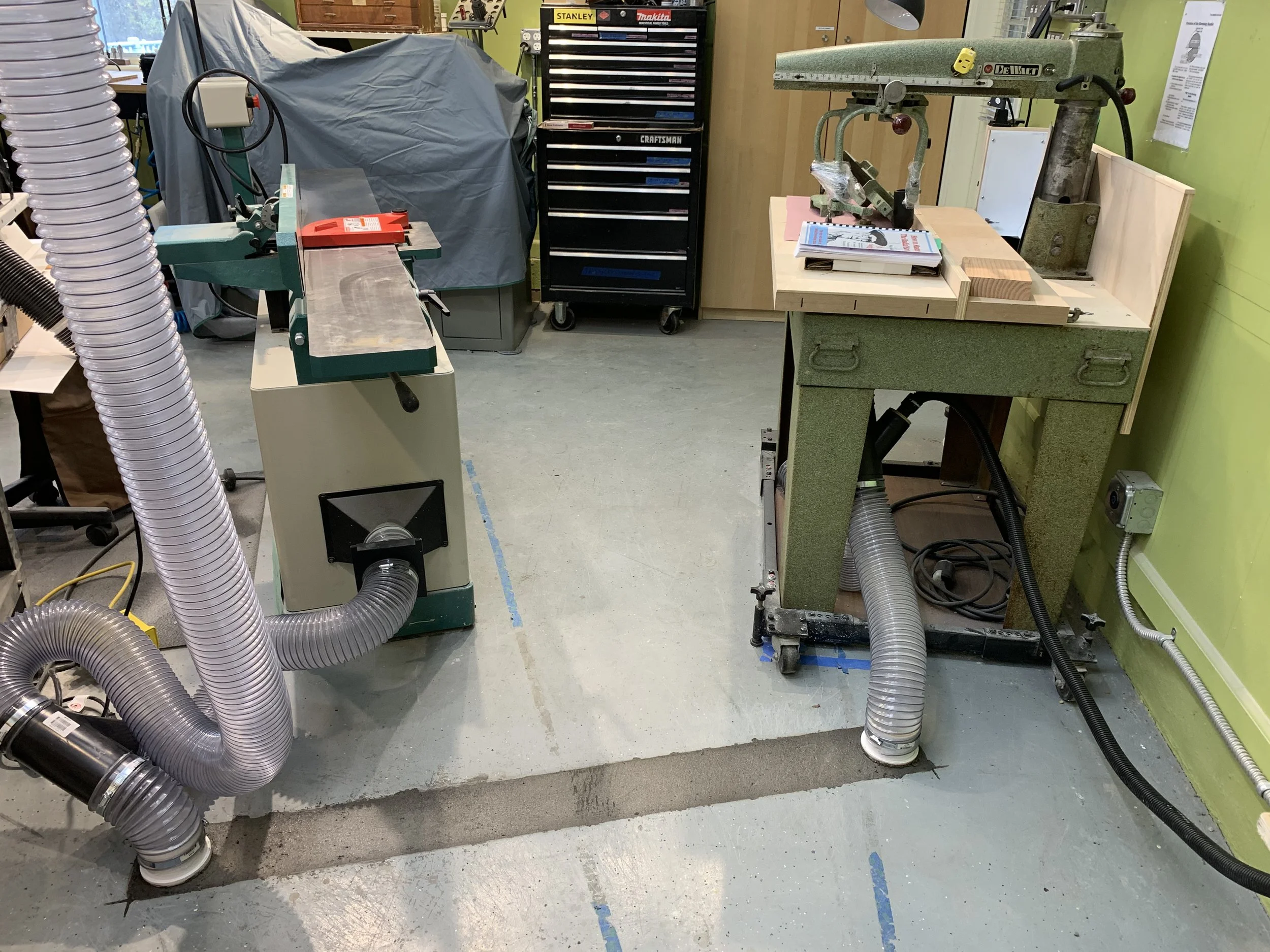

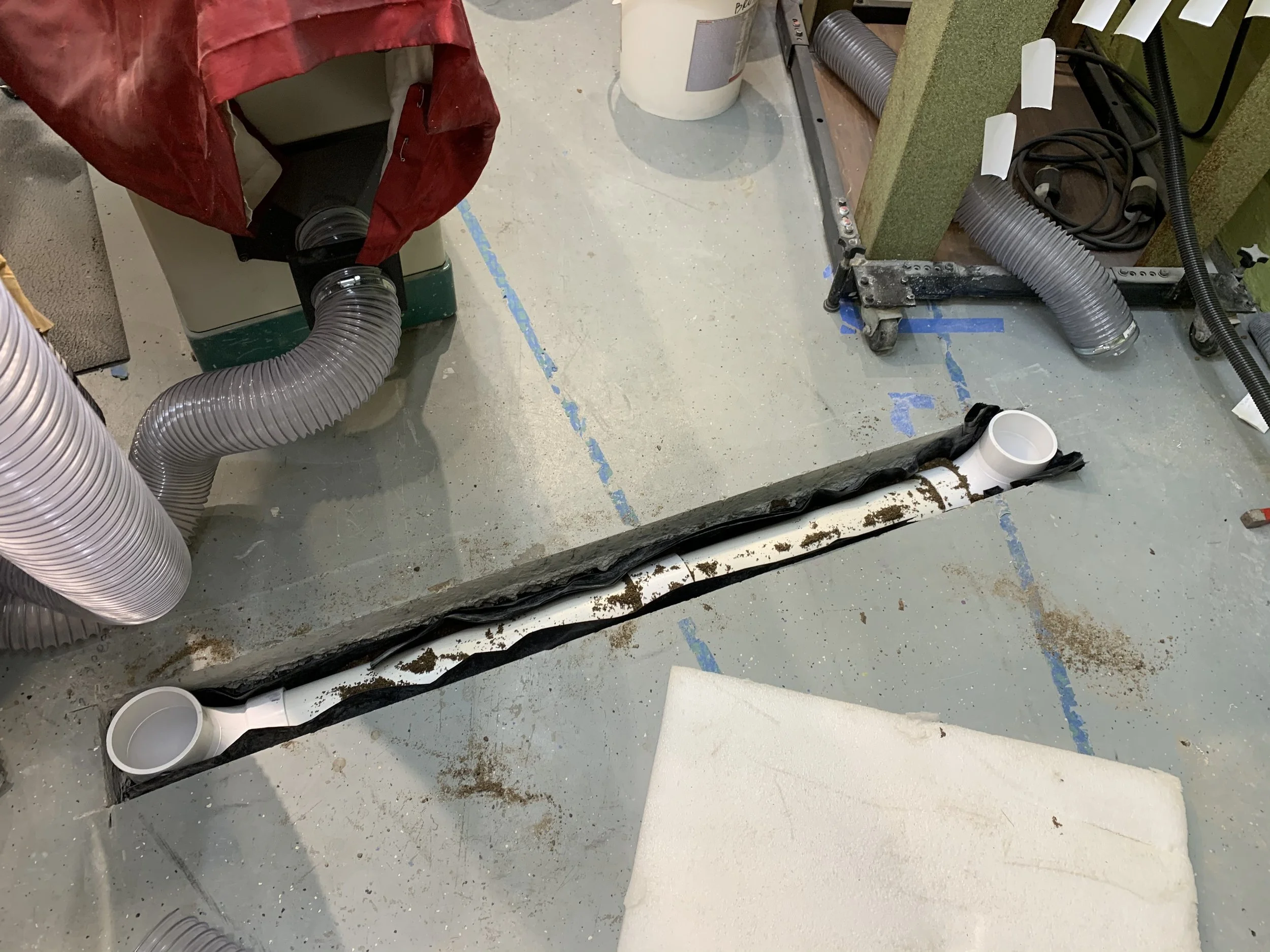

  • Ductwork prevents tripping hazard

  • 2" concrete thickness easily broken and refilled to remove.

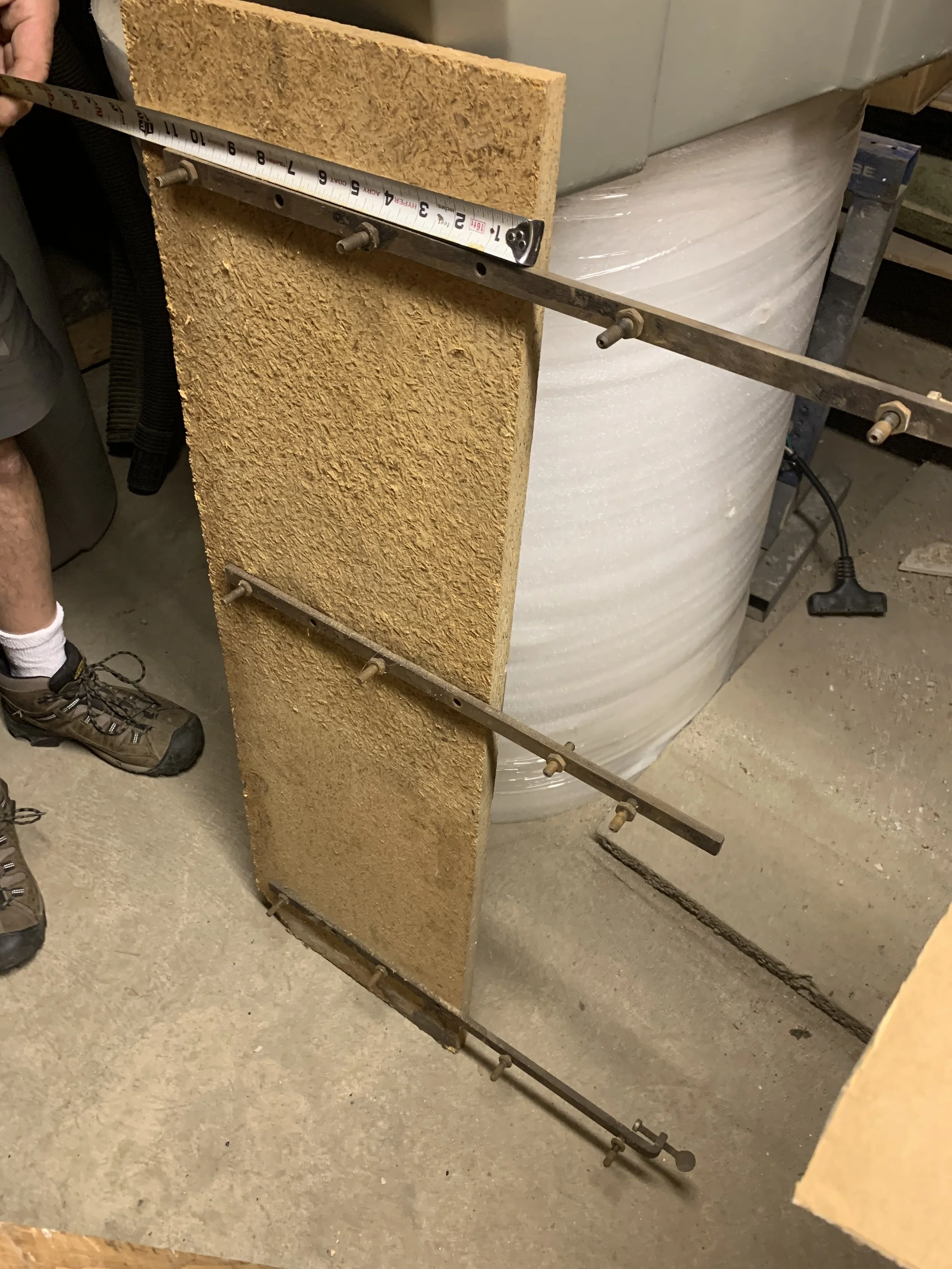

  • Example of adjustment bars with adjustable bolts/nuts for securing Mr. Sawdust table top to base.

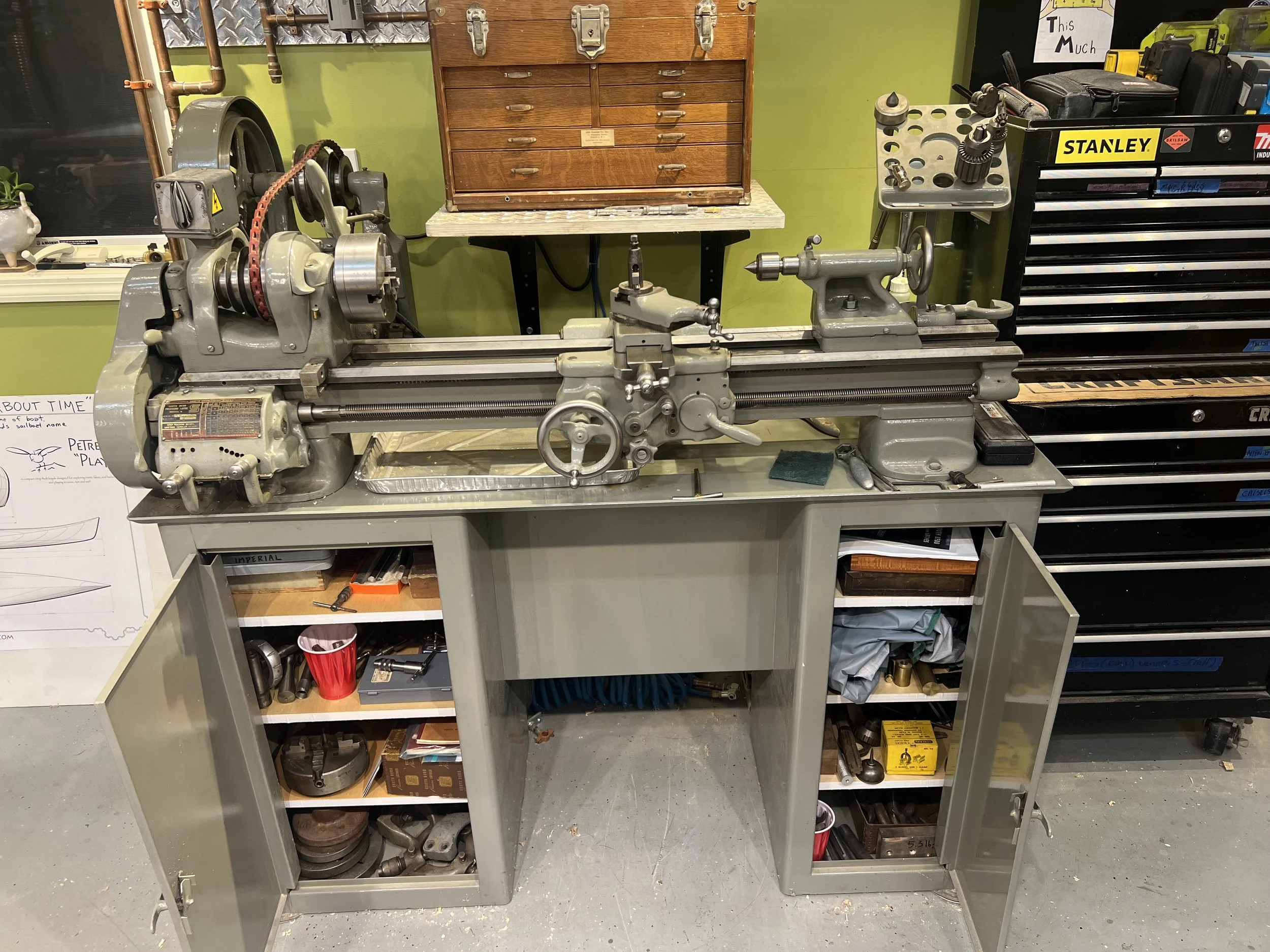

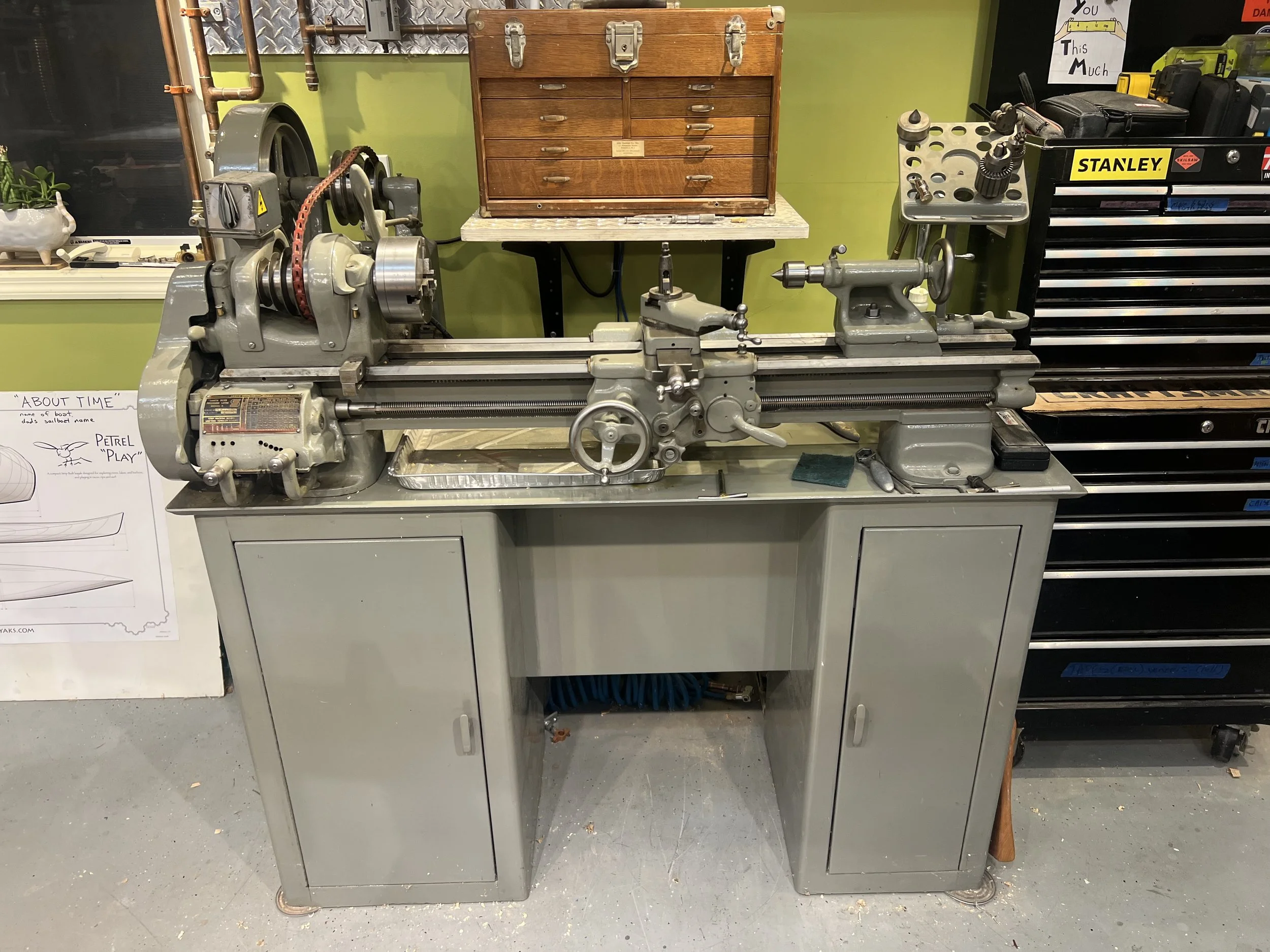

  • 1953 MODEL "A" SOUTH BEND LATHE REFINISHING. I'm a beginner thats fascinated with old machines and the men and women that ran them.

  • Original motor with power twist v-belt. Would like to upgrade with D.C. variable speed motor and a quick change tool holder with carbide inserts.

  • Lathe was lightly rusted and many parts covered in mouse urine. Entire lathe stripped of paint and steel parts wirebrushed polished and oiled.

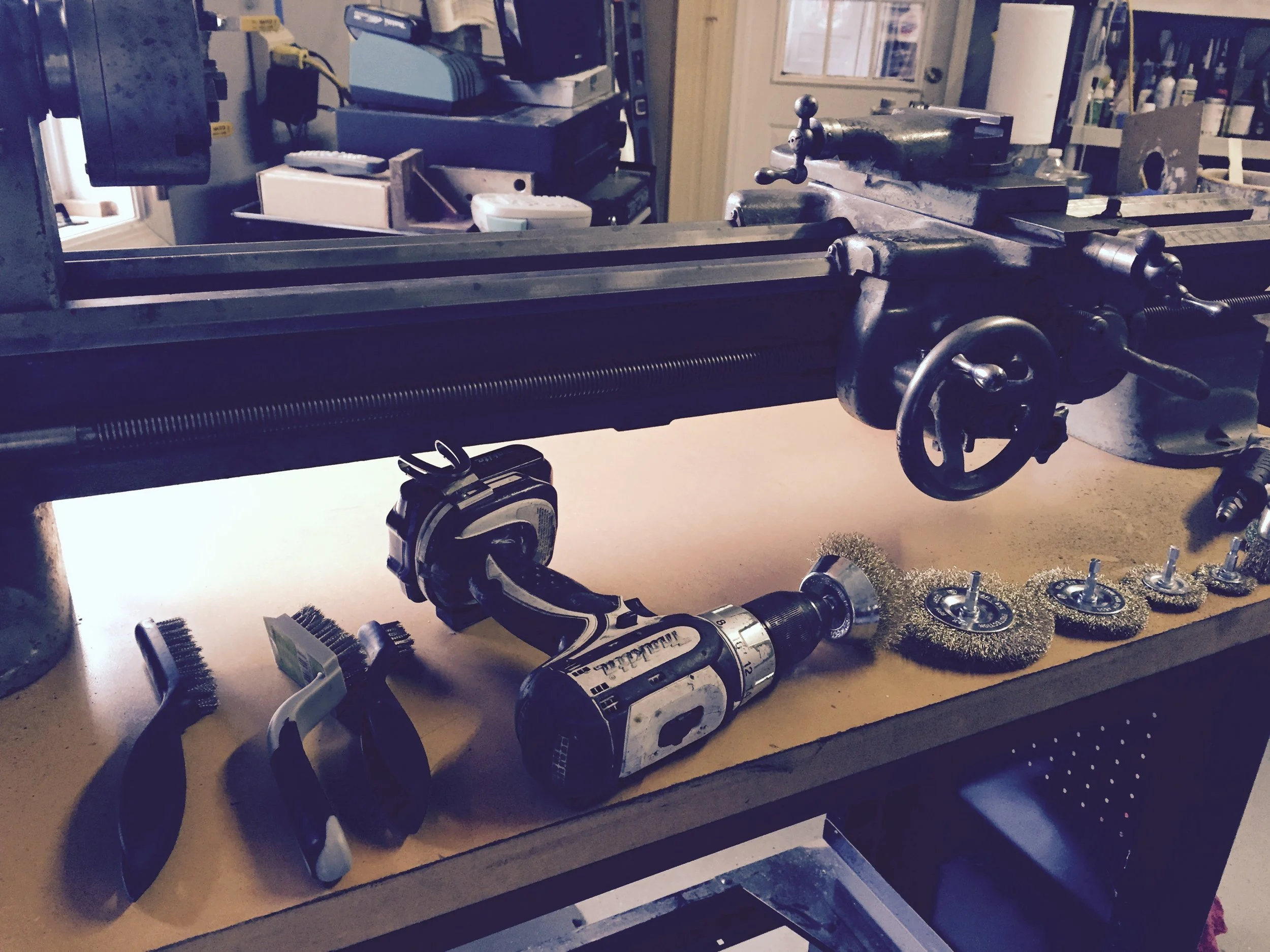

  • Variety of wire wheels used for stripping

  • Caste aluminum tool holder stripped

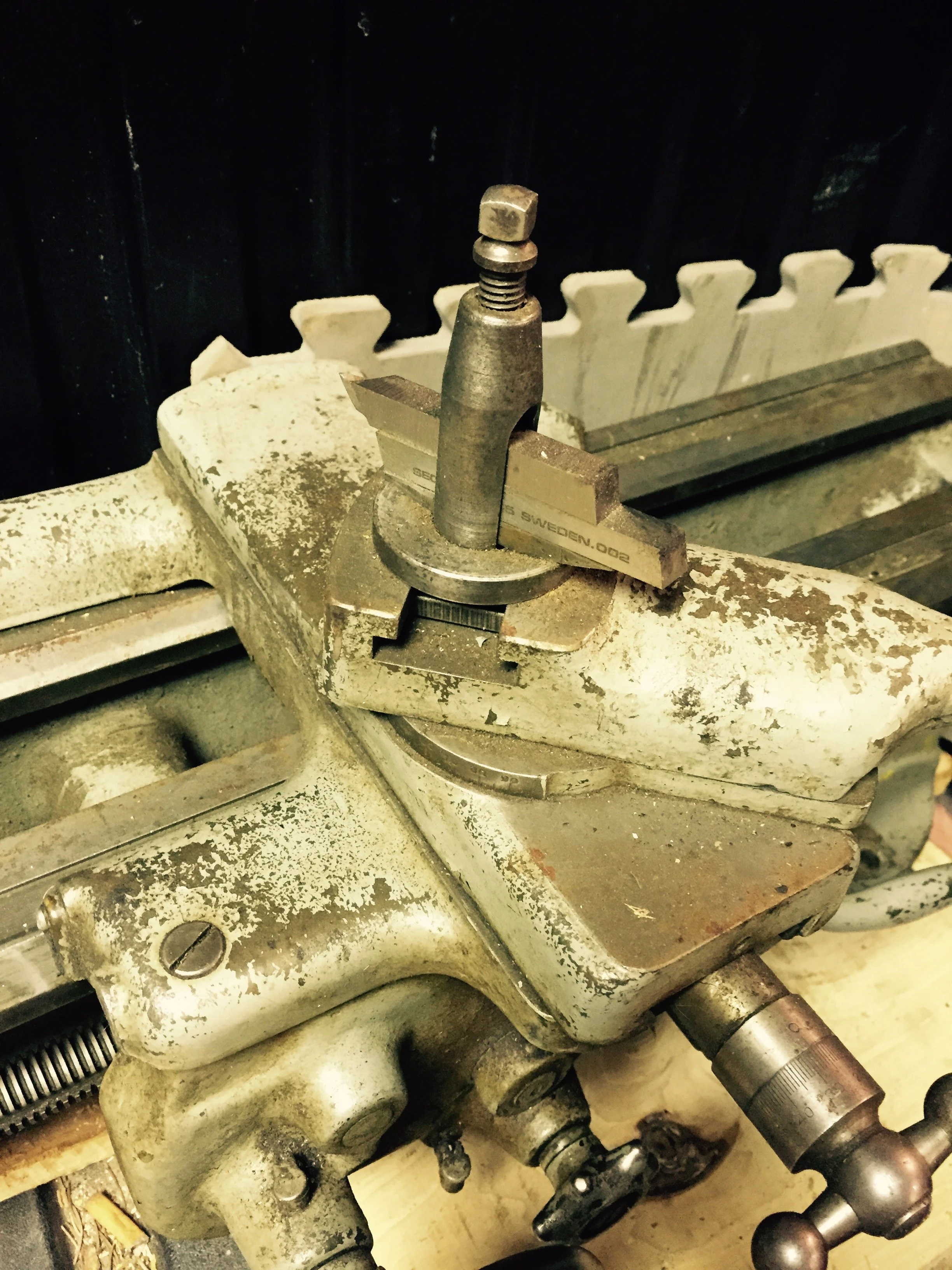

  • Carriage saddle and cross slide to be stripped and oiled

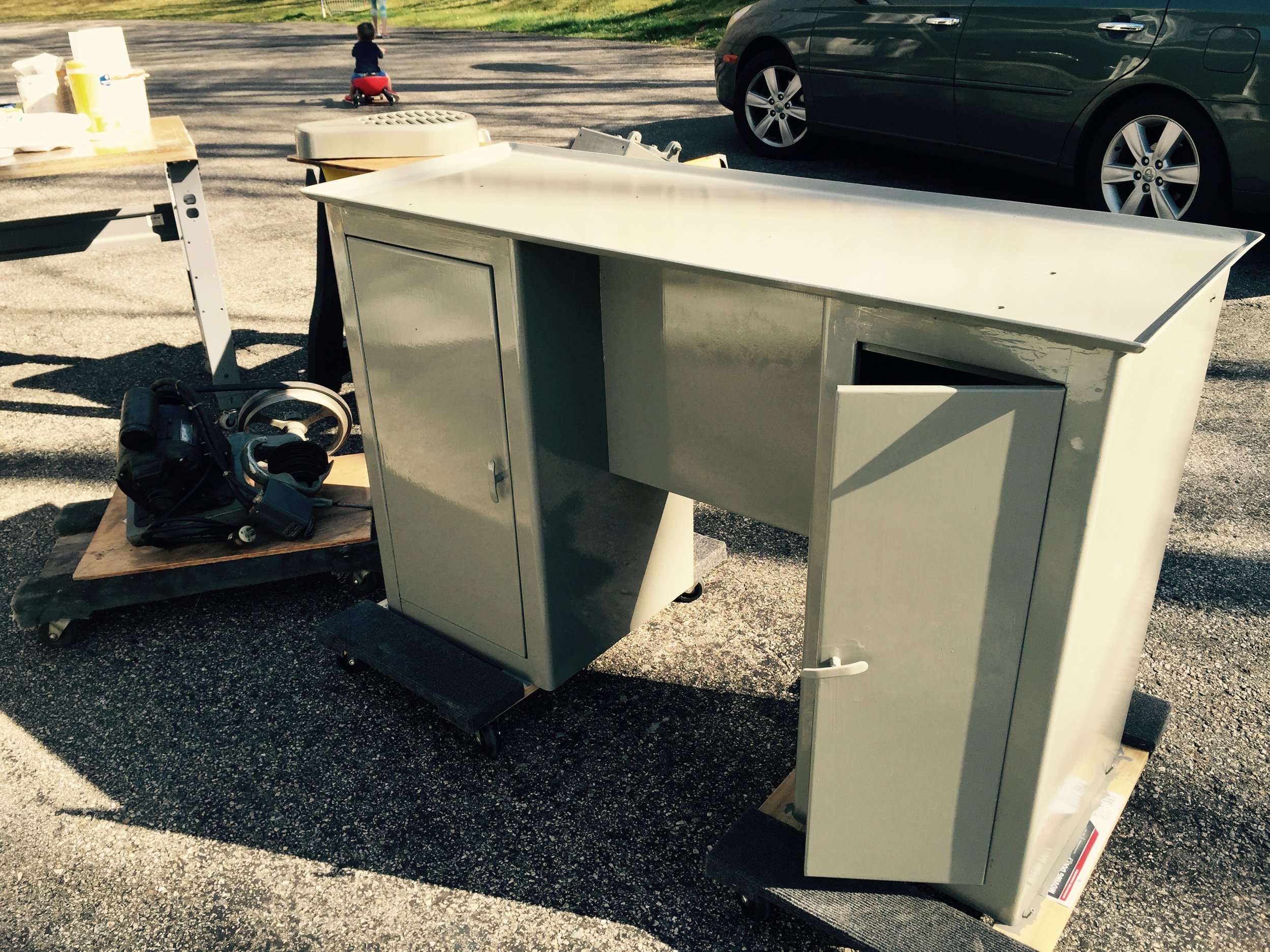

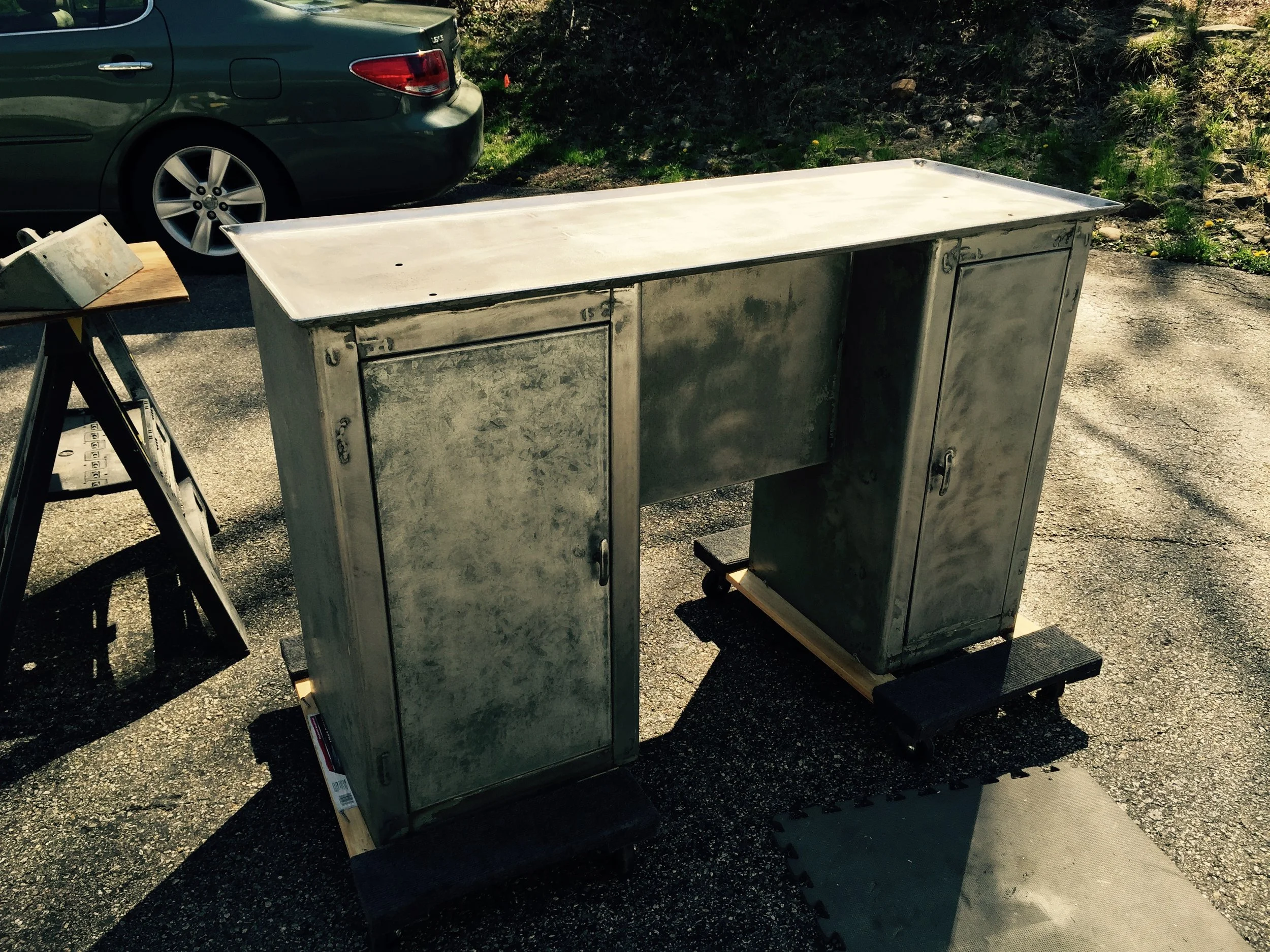

  • Cabinet stripped inside and outside

  • 2 Coats of matched Benjamin Moore oil based paint applied.

  • Tailstock to be stripped and Tailstock hard wheel polished

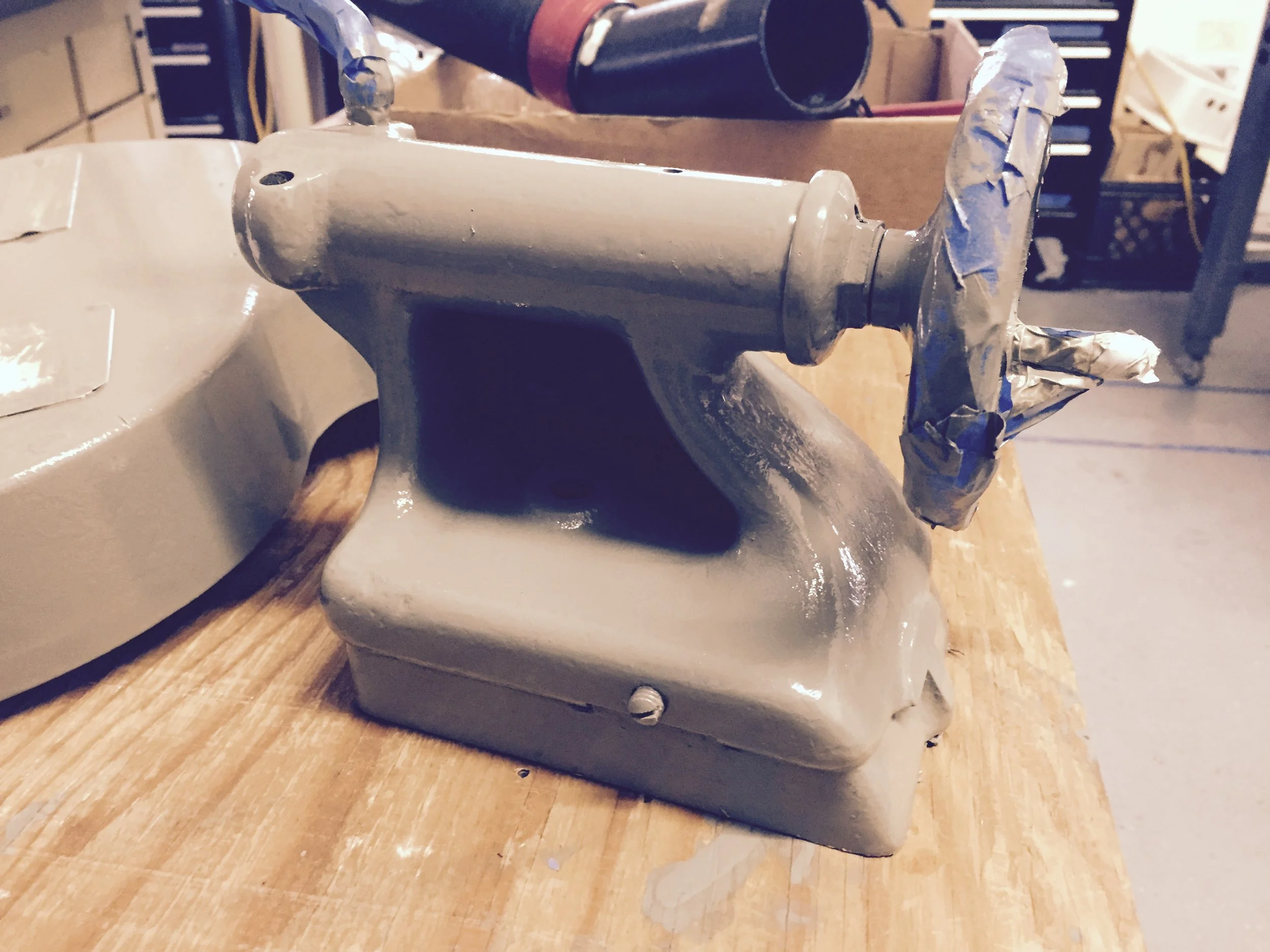

  • Tailstock painted

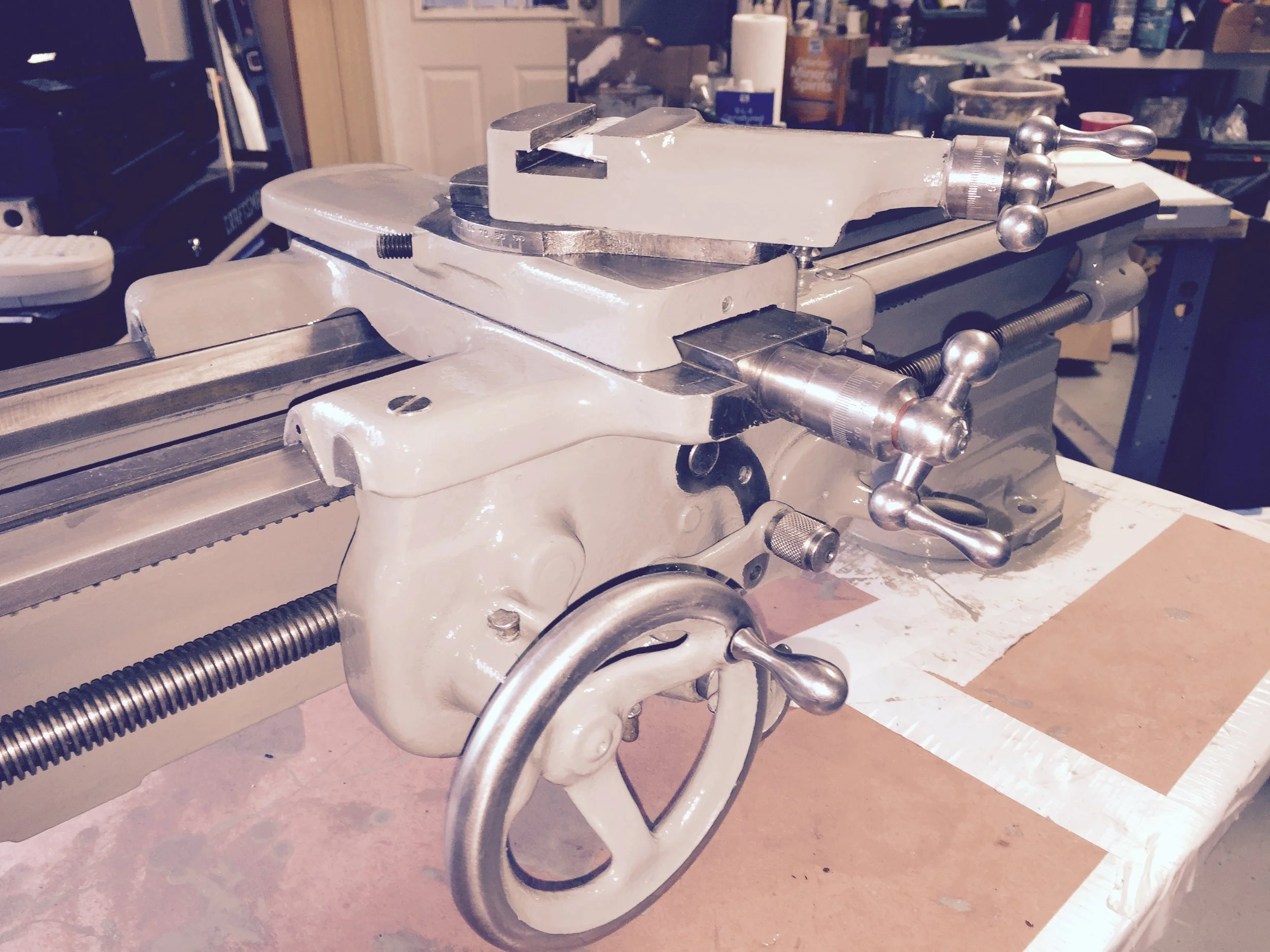

  • Carriage painted and steel handles polished. Oiled and adjusted.

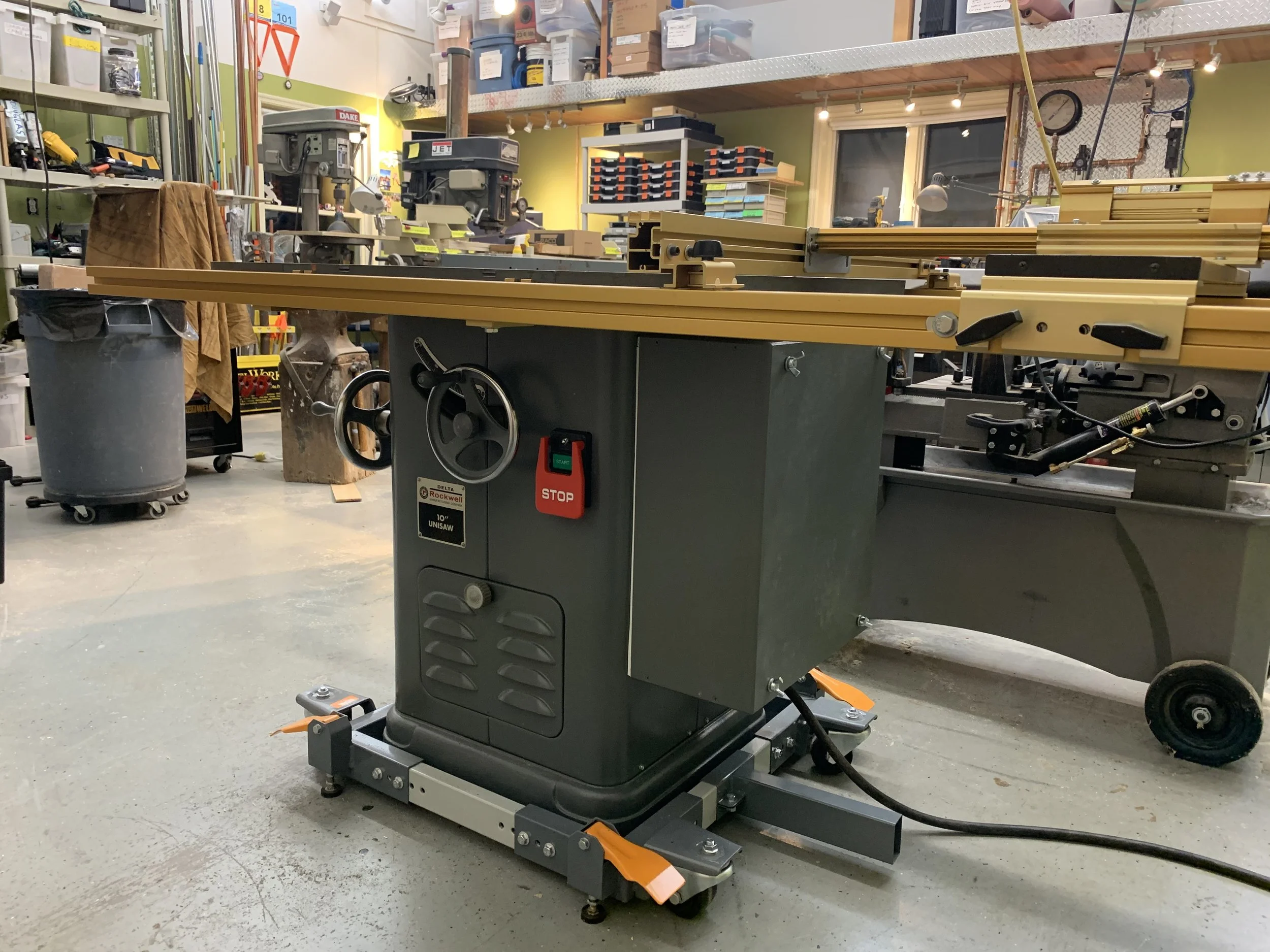

  • 1972 ROCKWELL DELTA UNISAW REBUILD/UPGRADE. New motor bearings, Bora® mobile stand, Incra® fence, storage cabinets. Stripped and painted with original color.

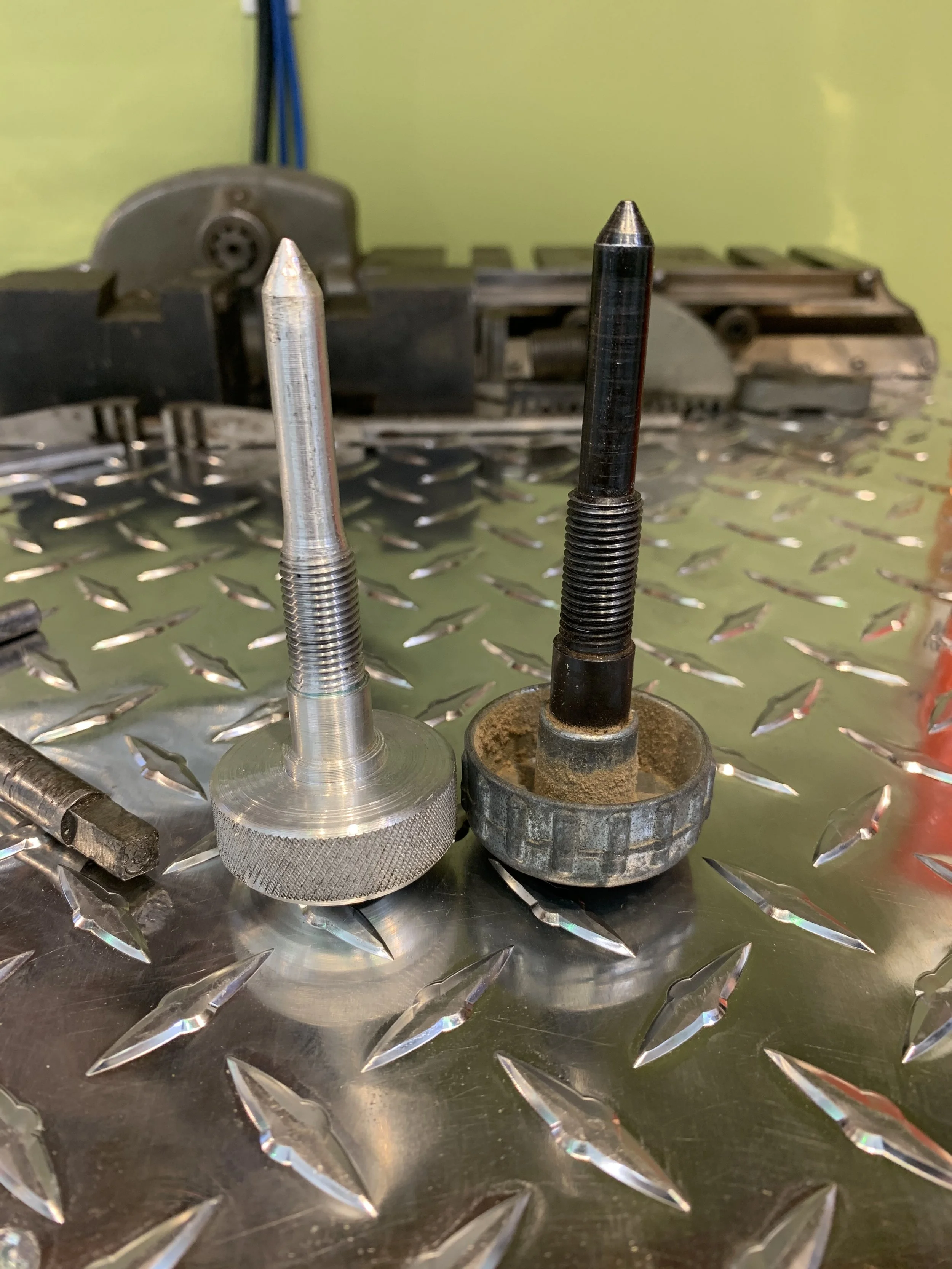

  • Machined aluminum knob for locking blade angle. Not available on Ebay.

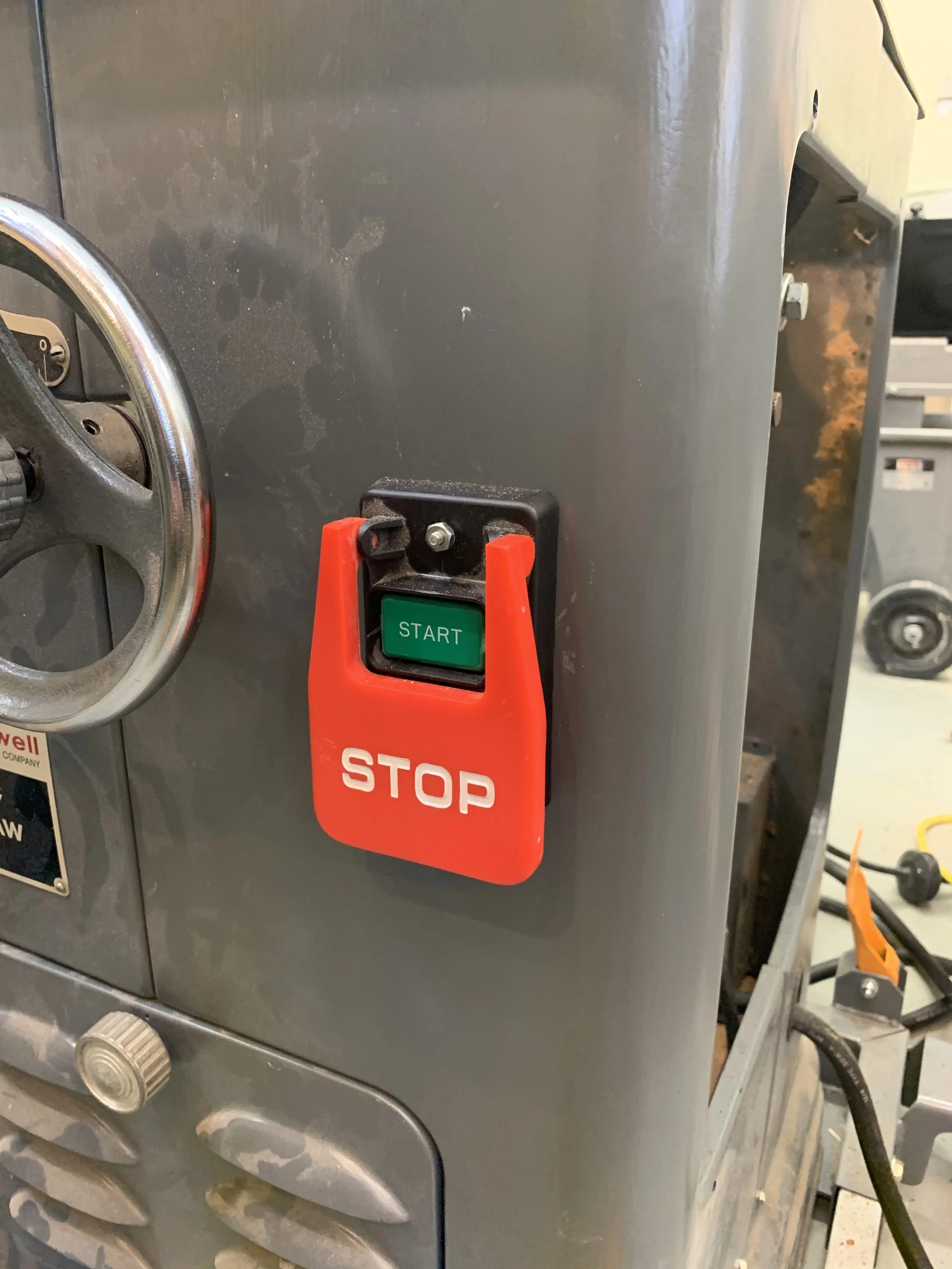

  • New emergency stop switch.

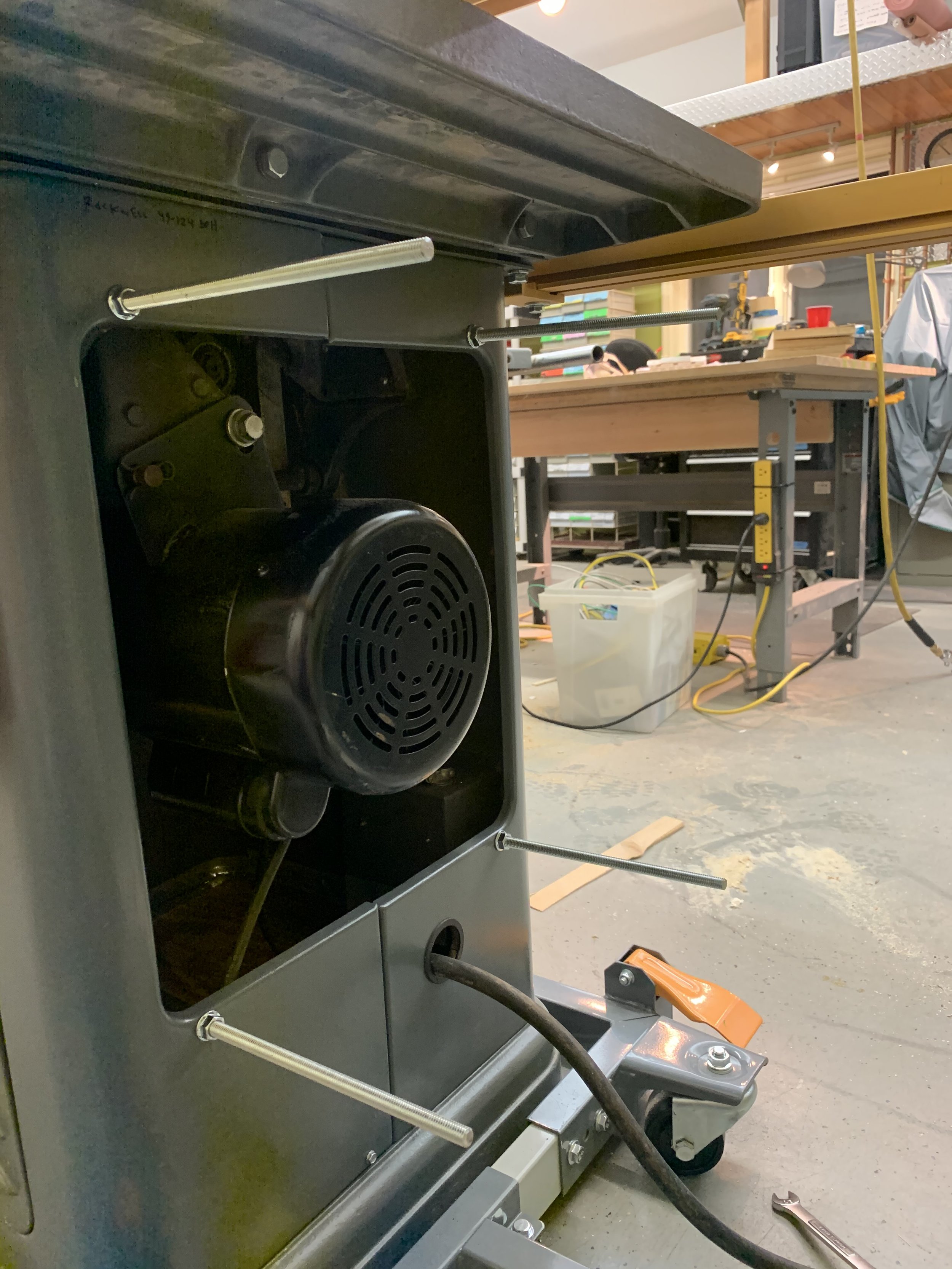

  • New dust collection motor enclosure. Originally was sheet metal.

  • Motor enclosure with foam seal and wingnuts for easy removal,

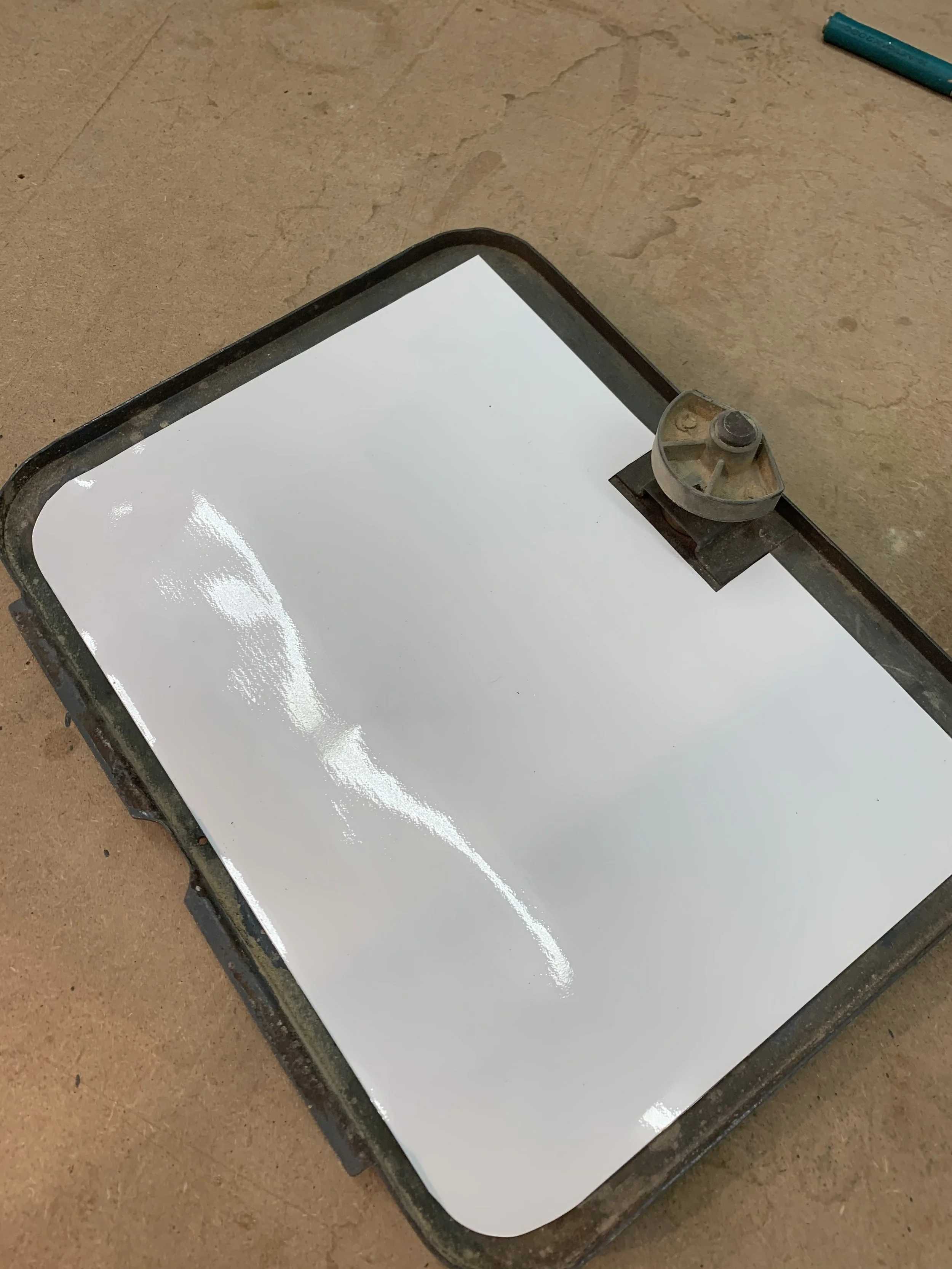

  • Magnetic sheet to restrict airflow on dust cleanout.

  • Added gated dust port.

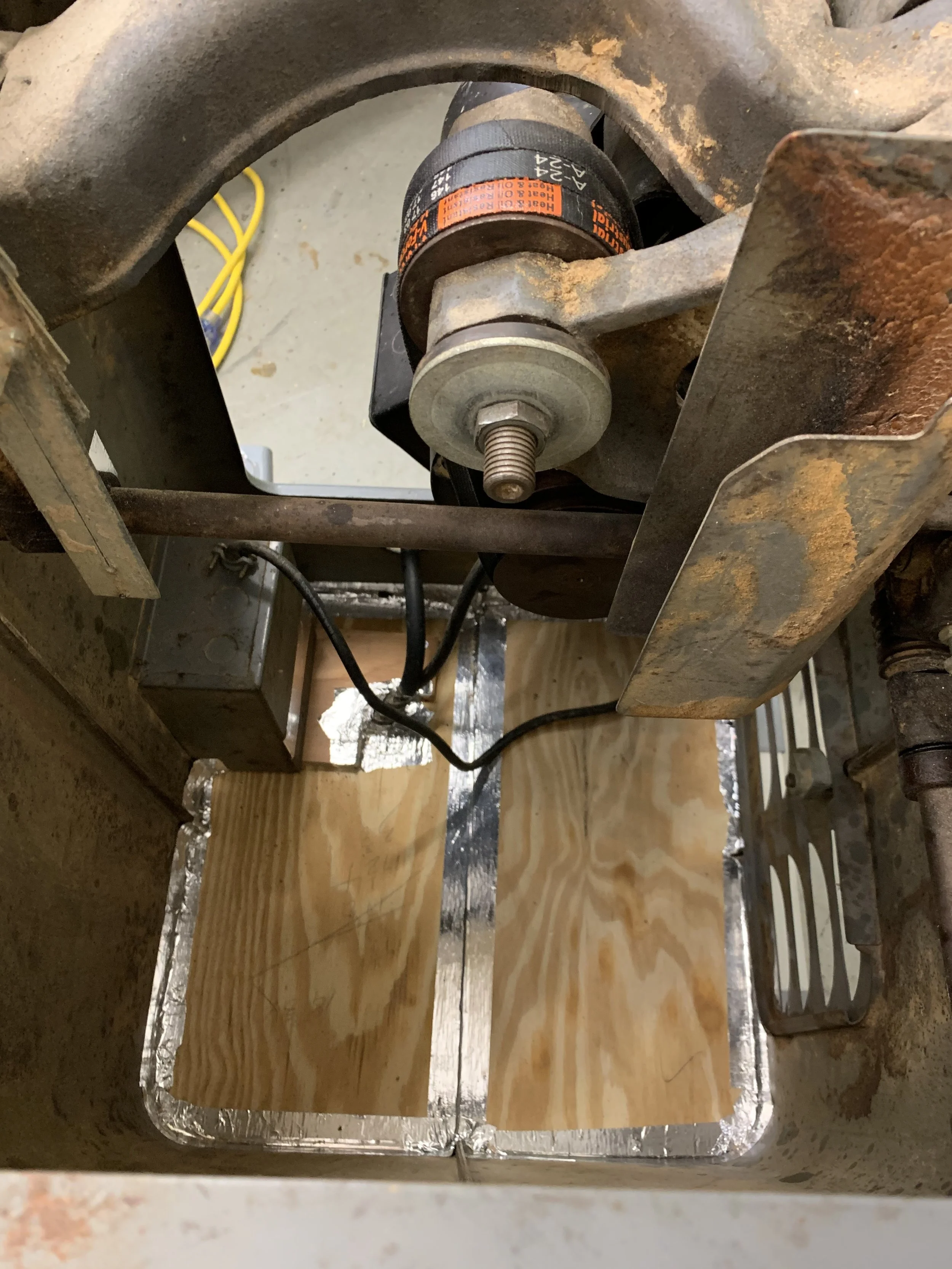

  • Added a sealed base for airtight dust collection.

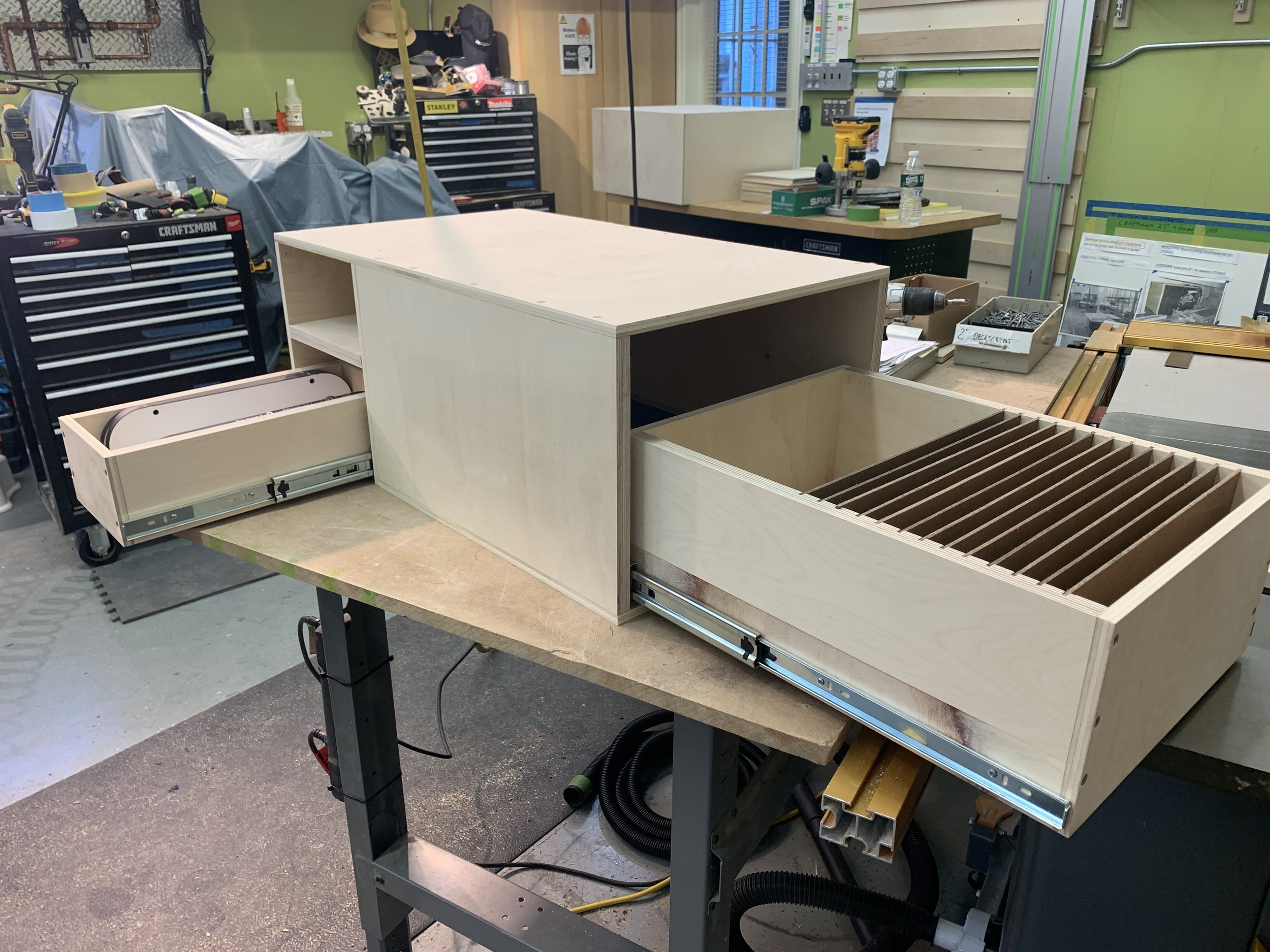

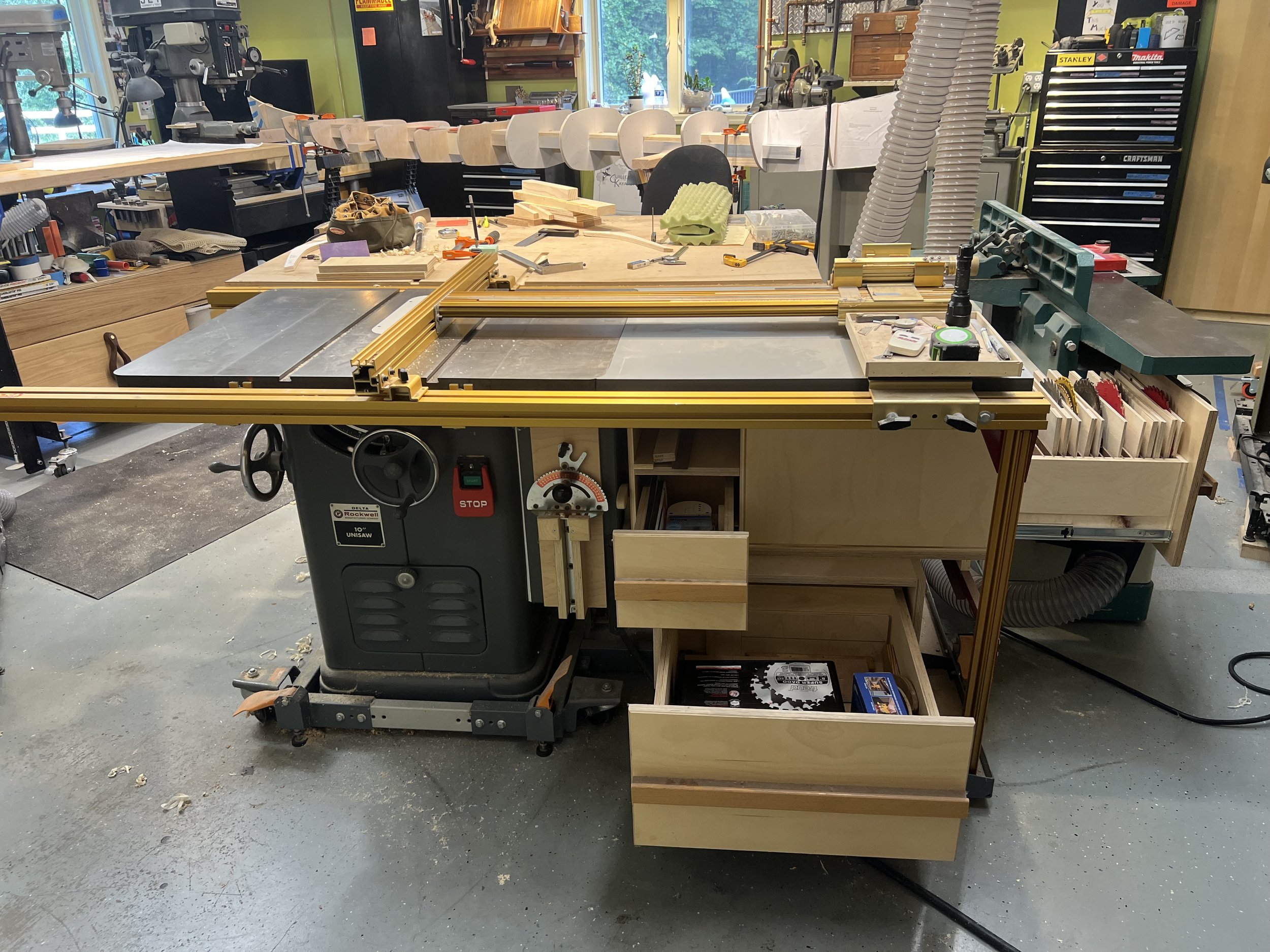

  • Blade storage and accessories cabinets.
